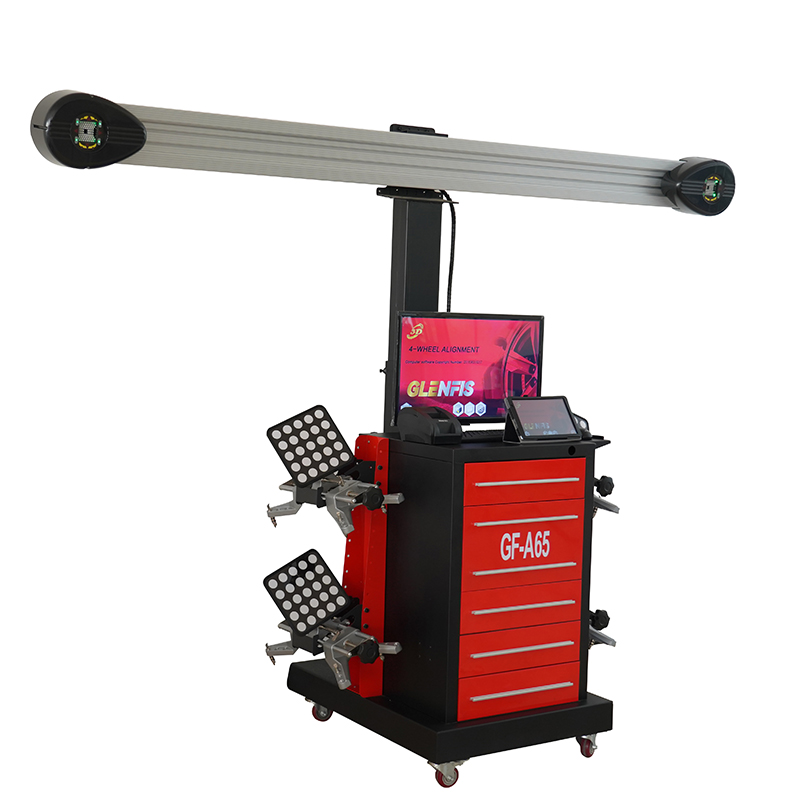

Guorange alignment systems use 3D/CCD tech to measure and correct key chassis angles like toe, camber, and caster—fast and precise.
Highlights:
• ±0.01° Accuracy with auto wheel detection
• Global Vehicle Database, incl. Russian models
• Industrial-Grade Core for harsh environments
• Multilingual UI with LCD & one-click operation
• Wide Vehicle Range: from sedans to light vans
Ideal for workshops, tire shops, and fleet service centers that demand speed and precision.
| Measuring System | CCD / 3D vision system |
|---|---|
| Measuring Method | Multi-angle image reconstruction / Infrared synchronization / Optical triangulation |
| Measurement Accuracy | ±0.01° to ±0.03° |
| Rim Size Range | 10 – 26 inches |
| Wheelbase Range | 1800 – 4300 mm |
| Maximum Vehicle Width | 2600 mm |
| Measurement Items | Toe, camber, caster, thrust angle, wheel offset, wheelbase, etc. |
| Vehicle Database | Global vehicle data built-in |
| supports USB/network updates and local customization | |
| Language Support | English, Russian, Chinese (expandable to others) |
| Display System | Industrial-grade LCD / Touchscreen all-in-one / Industrial PC |
| Report Output | Supports printing, LAN export, cloud sync, report archiving |
| Optional Accessories | Printer, steering wheel lock, brake pedal lock, secondary lift detection platform, mobile trolley, etc. |
| Applications | Auto repair shops, tire stores, fleet service centers, 4S dealerships, mobile service vans |
