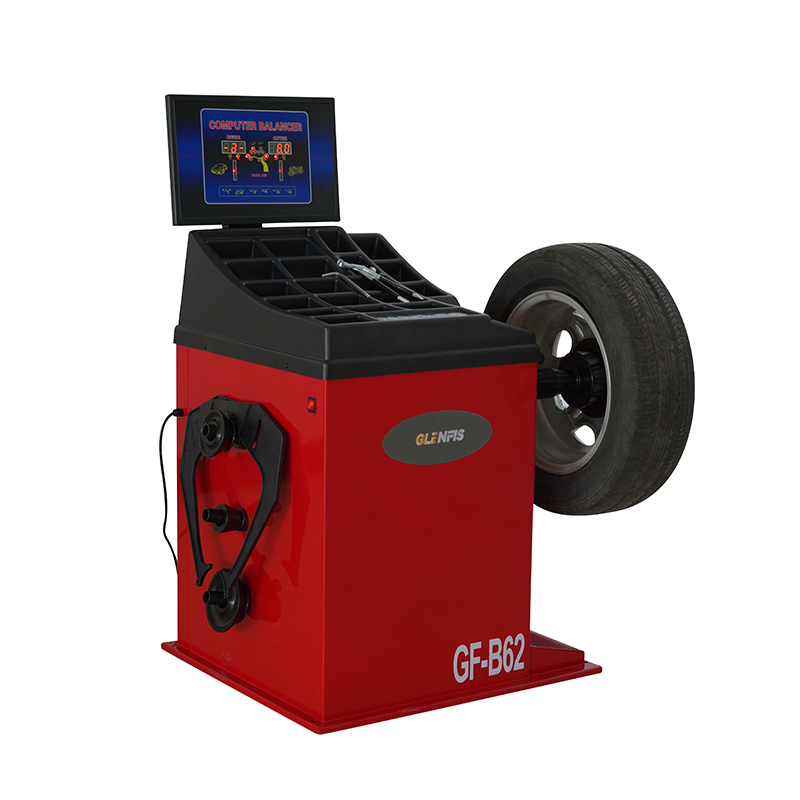

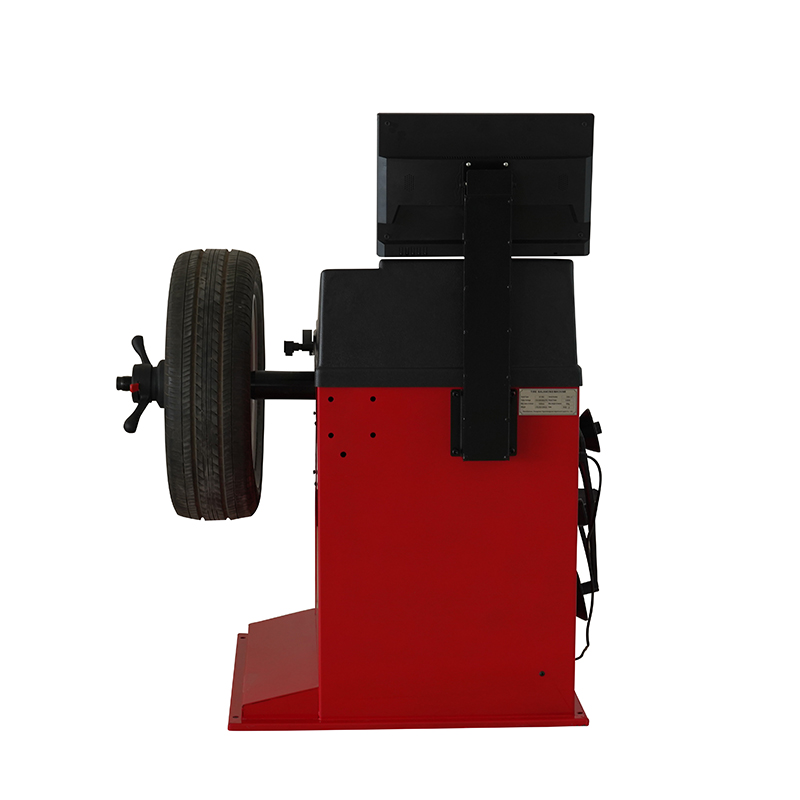

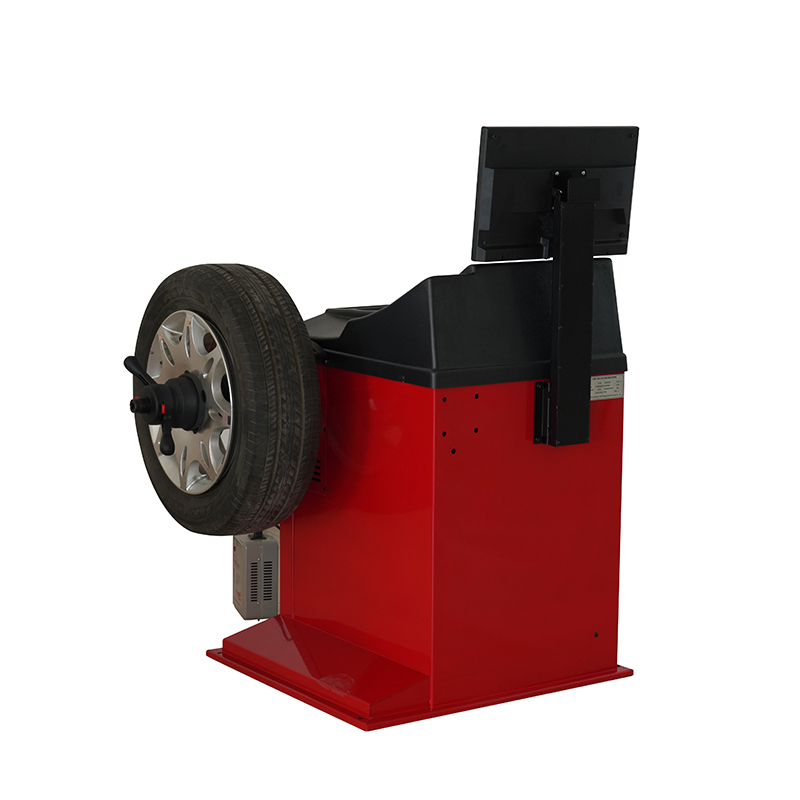

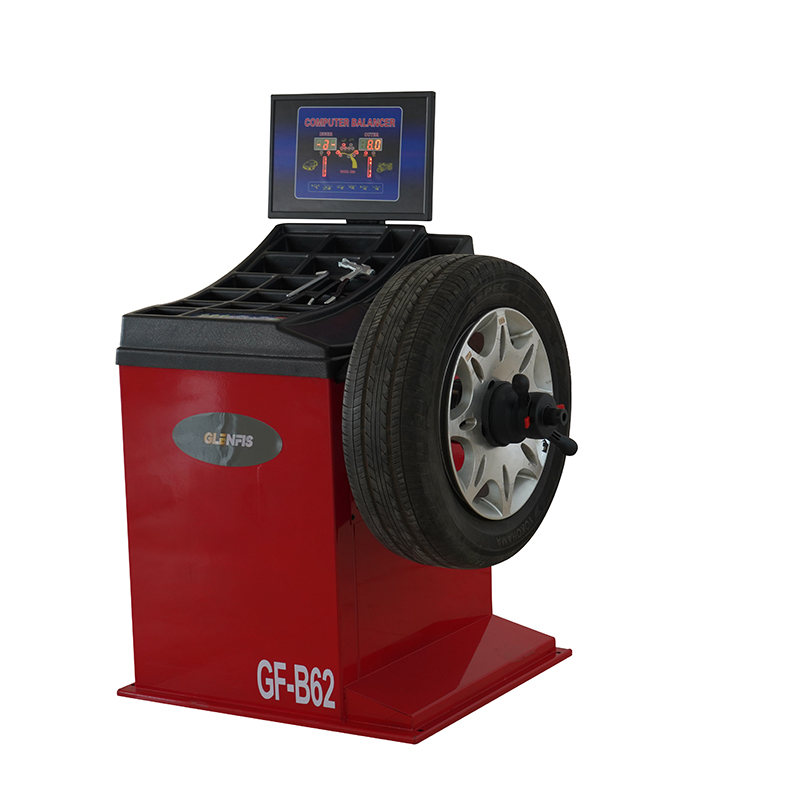

GF-B62-Wheel Balancer

The Guorange B62 is an industrial-grade digital wheel balancer engineered for high-volume automotive repair shops, tire service bays, and commercial garages. Powered by a high-efficiency 0.25 kW pure copper winding motor operating at 180 RPM, the B62 delivers ±1g balancing precision within a rapid 7-second measuring cycle. Built with a heavy-duty 3mm vibration-reducing welded steel chassis, a hardened φ36mm extended spindle shaft, and an integrated dual-side calibration system, this unit services passenger cars, SUVs, and light commercial wheel assemblies up to 65 kg (143 lbs) with long-term calibration stability.

Key Features :

Dual-Side Self-Calibration Architecture: Features dual-side calibration software and automated fault diagnosis, streamlining daily calibration procedures and minimizing technician setup time.
Reinforced Sensor Support Base: Heavy-duty sensor mounting bracket isolates external workshop resonance, ensuring consistent ±1g balancing accuracy on the first spin.
Heavy-Duty 3mm Welded Steel Body: Structural 3mm steel casing dampens mechanical vibration during high-speed rotation to protect balance readings from shop floor interference.
Hardened φ36mm Extended Spindle Shaft: Precision-machined, wear-resistant alloy shaft supports wide wheel offsets (widths from 3″ to 12″) and rims up to 30 inches without rotational deflection.
Industrial Protected Electronics: Equipped with an integrated moisture-proof, dust-proof, and anti-static motherboard, paired with a stable power board to operate reliably in harsh shop environments.
Multi-Mode Balancing Programs: Supports static, dynamic, and specialized alloy wheel balancing modes with instant unit switching between Ounce/Gram and MM/Inch.
Rapid 7-Second Measuring Cycle: High-throughput processing hardware completes dual-plane imbalance calculations in 7 seconds, maximizing bay efficiency and daily wheel turnover.

Configurable Options (B2B Customization)

We configure power units and structural details prior to production to match regional electrical grids and private-label requirements:

Electrical System Configurations: Standard 120V / 1PH / 60Hz setup, or pre-configured 110V / 220V / 380V (50/60Hz, Single or Three-Phase) for global markets.
ब्रांड & Finish Customization: Custom color industrial powder coatings, private-label branding plates, tailored balancing cone kits, and specialized export packaging (Low MOQ available).

B2B Commercial & Support Terms
- Commercial Warranty: Factory warranty covering the pure copper motor, digital sensor boards, and mechanical spindle assembly, backed by direct replacement parts authorization.
- Global Logistics & Mixed Loading: Export-standard packaging; fully supports mixed-container logistics alongside tire changers and car lifts to optimize freight costs.
- Technical Assistance Channel: Direct factory engineering access for remote diagnostics, dual-side calibration guidance, and electrical setup assistance.

Specifications

Equipment Model	Guorange B62
Balancing Accuracy	±1 g (0.04 oz)
Measuring Cycle Time	7 seconds
Balancing Spin Speed	180 rpm
Rim Diameter Range	< 30" (762 mm)
Wheel Width Range	3" – 12" (76 – 305 mm)
Max Wheel Diameter	< 880 mm (34.6")
Max Wheel Weight	< 65 kg (143 lbs)
Spindle Shaft Diameter	φ36 mm (Hardened Alloy Steel)
Rim Center Hole Diameter	< 135 mm (5.31")
Motor Power	0.25 kW Pure Copper Winding
Standard Power Supply	120V / 1PH (Configurable 110V / 220V / 380V)
Unit System Options	Ounce / Gram & MM / Inch
Chassis Wall Thickness	3 mm Heavy-Duty Welded Steel
Compliance & Standards	Full CE & EAC Certified for Global Export

पूछे जाने वाले प्रश्न

Q1: How does the dual-side calibration system simplify routine machine maintenance?

The integrated dual-side calibration routine allows technicians to recalibrate both inner and outer sensors simultaneously through a guided on-screen sequence. This eliminates complex manual mechanical indexing, ensuring the machine maintains ±1g precision without requiring external calibration service technicians.

Q2: What structural components ensure balancing repeatability on wider wheels?

The B62 features an extended, hardened φ36mm alloy spindle shaft anchored directly to a reinforced sensor mounting base inside a 3mm welded steel cabinet. This rigid mechanical layout resists bending under offset wheel loads up to 12" in width, dampening vibrational interference during the 180 RPM spin cycle.

Q3: What is the typical lead time for standard wholesale and custom OEM orders?

Standard configurations typically ship within 20–30 days from deposit confirmation. Custom private-label runs, specific powder-coat colors, and customized motor voltage configurations are scheduled upon engineering design approval.
