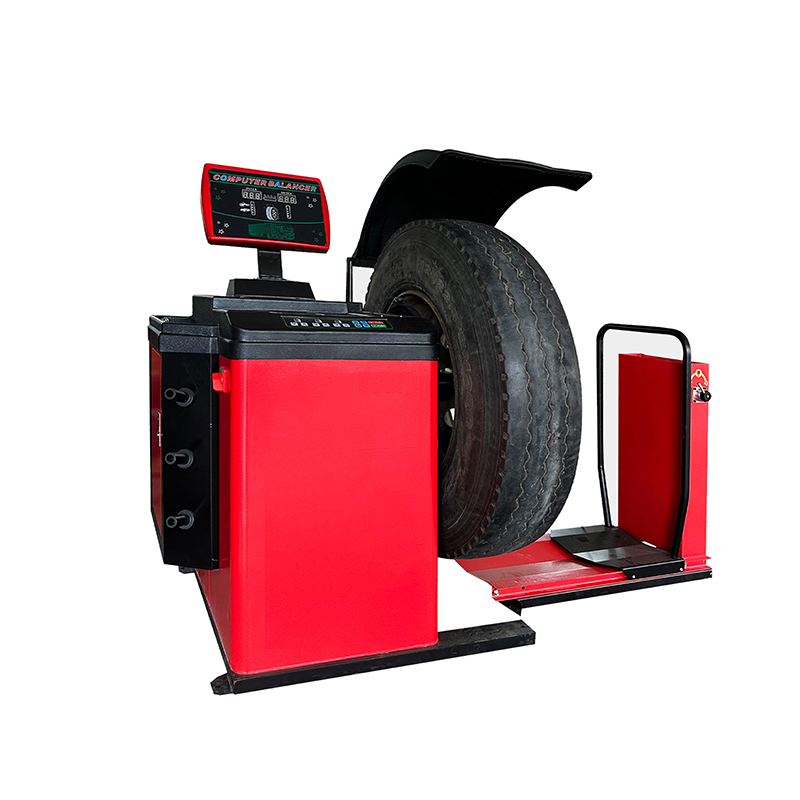

GF-B79 – Wheel Balancer

The Guorange B79 is an industrial-grade heavy-duty wheel balancer engineered specifically for commercial transport trucks, transit buses, agricultural machinery, and fleet service facilities. Built on a reinforced structural steel chassis with a heavy load capacity of 180 kg (396 lbs), the B79 handles oversized wheel assemblies up to 56 inches (1,422 mm) in diameter and rim widths up to 20 inches (508 mm) with fast, repeatable balancing precision. Powered by a 0.75 kW drive motor running at 180 RPM, this unit completes static and dynamic balancing calculations within a rapid 8–10 second measuring cycle while maintaining a quiet workshop noise level below 70 dB.

Key Features :

High-Capacity Commercial Load (180 kg / 396 lbs): Heavy-duty alloy spindle and high-load bearing assemblies support large commercial truck tires and dual-wheel assemblies without shaft flexing or axis runout.
Expanded Commercial Wheel Range: Accommodates rim diameters from 12″ to 26″, rim widths from 1.5″ to 20″, and maximum overall wheel diameters up to 56″ (1,422 mm).
Rapid 8–10 Second Measuring Cycle: High-throughput processing hardware executes dual-plane imbalance calculations in under 10 seconds, accelerating turnaround times in busy commercial service bays.
Vibration-Damped Steel Chassis: Heavy structural cabinet (~580–650 lbs) isolates mechanical resonance and suppresses external floor vibrations to maintain calibration accuracy during high-inertia spins.
Low-Noise Precision Operation (<70 dB): High-efficiency 0.75 kW drive system delivers continuous starting torque for heavy commercial assemblies while maintaining a quiet, operator-safe shop environment.
Commercial Multi-Mode Balancing: Built-in software features static, dynamic, and specialized alloy rim modes with instant unit switching for precise weight placement on steel or forged alloy truck wheels.

Configurable Options (B2B Customization)

We configure power units, mounting adapters, and branding prior to production to match regional commercial fleet standards:

Electrical Configurations: Standard 220V / 1PH or 220V / 3PH setup, or pre-configured 380V / 440V (50/60Hz, 3-Phase) systems for international workshop grids.
Brand & Finish Customization: Custom color industrial powder coatings, private-label nameplates, specialized commercial cone/spacer kits, and pneumatic wheel lifter compatibility (Low MOQ available).

B2B Commercial & Support Terms
- Commercial Warranty: Factory warranty covering the 0.75 kW drive motor, commercial spindle assembly, and digital sensor board, backed by direct replacement parts authorization.
- Global Freight & Mixed Loading: Export-grade heavy crating; supports mixed-container logistics alongside truck tire changers (T160), passenger tire changers, and car lifts.
- Technical Assistance Channel: Direct factory engineering access for remote diagnostics, commercial cone calibration guidance, and electrical setup support.

Specifications

Equipment Model	Guorange B79
Product Type	Heavy-Duty Commercial Truck Wheel Balancer
Max Wheel Weight	180 kg (396 lbs)
Rim Diameter Range	12" – 26" (305 – 660 mm)
Rim Width Range	1.5" – 20" (38 – 508 mm)
Max Wheel Diameter	56" (1,422 mm)
Balancing Cycle Time	~8 – 10 seconds per wheel
Balancing Spin Speed	~180 rpm
Motor Power	~0.75 kW
Operating Noise Level	< 70 dB
Standard Power Supply	220V / 1PH or 220V / 3PH (Configurable 380V 3PH)
Machine Weight	~580 – 650 lbs (~263 – 295 kg)
Compliance & Standards	Full CE & EAC Certified for Global Export

FAQs

Q1: What structural provisions prevent spindle deflection when balancing 180 kg commercial assemblies?

The B79 is built with an oversized, heat-treated high-strength alloy spindle shaft paired with industrial double-row bearing blocks and an 8mm reinforced sensor mounting plate. This rigid mechanical core supports the full 180 kg static and dynamic cantilever load without axis bending, ensuring consistent balancing accuracy across large fleet wheels.

Q2: What commercial vehicle types can be serviced with the B79?

The B79 is designed to service standard long-haul commercial highway trucks, city transit buses, refuse trucks, delivery coaches, and agricultural equipment wheels using rim diameters from 12" up to 26" and total tire diameters up to 56".

Q3: What is the typical lead time for standard wholesale and custom OEM private-label orders?

Standard configurations typically ship within 20–30 days from deposit confirmation. Custom private-label runs, specialized powder-coat colors, and customized 3-phase motor builds are scheduled upon technical design approval.
