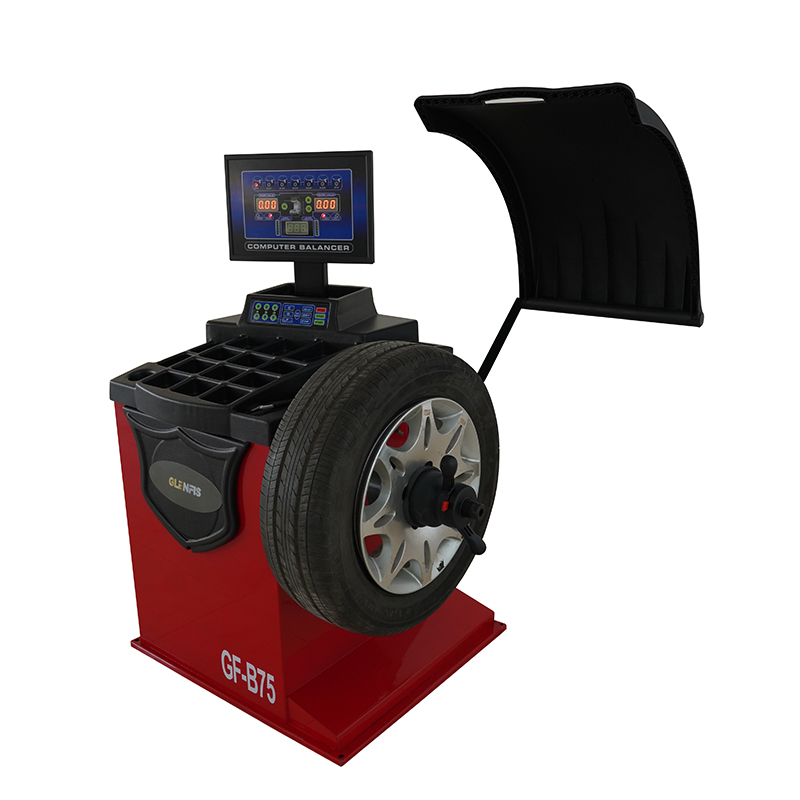

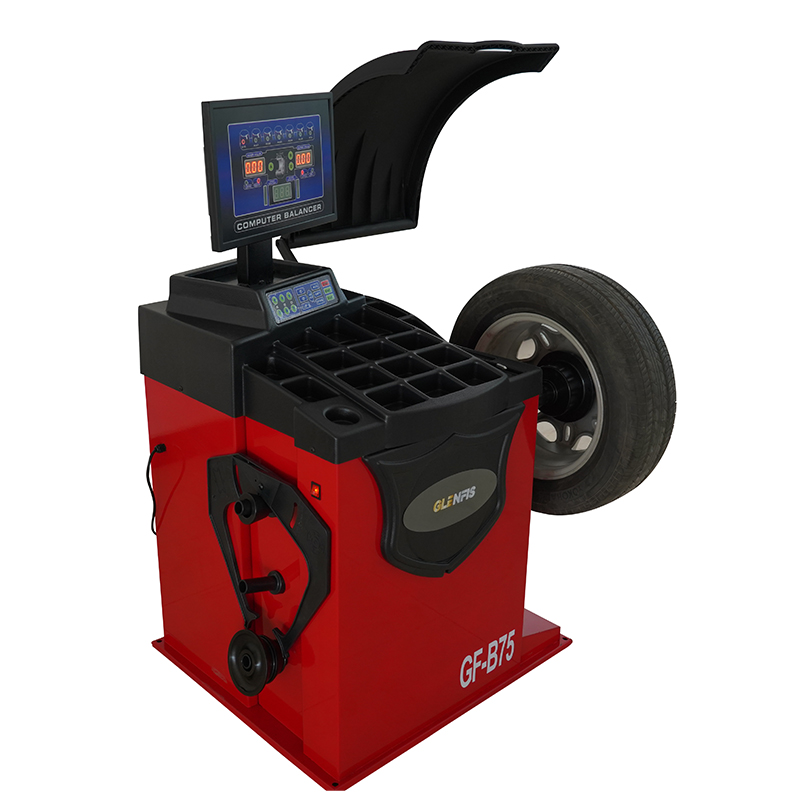

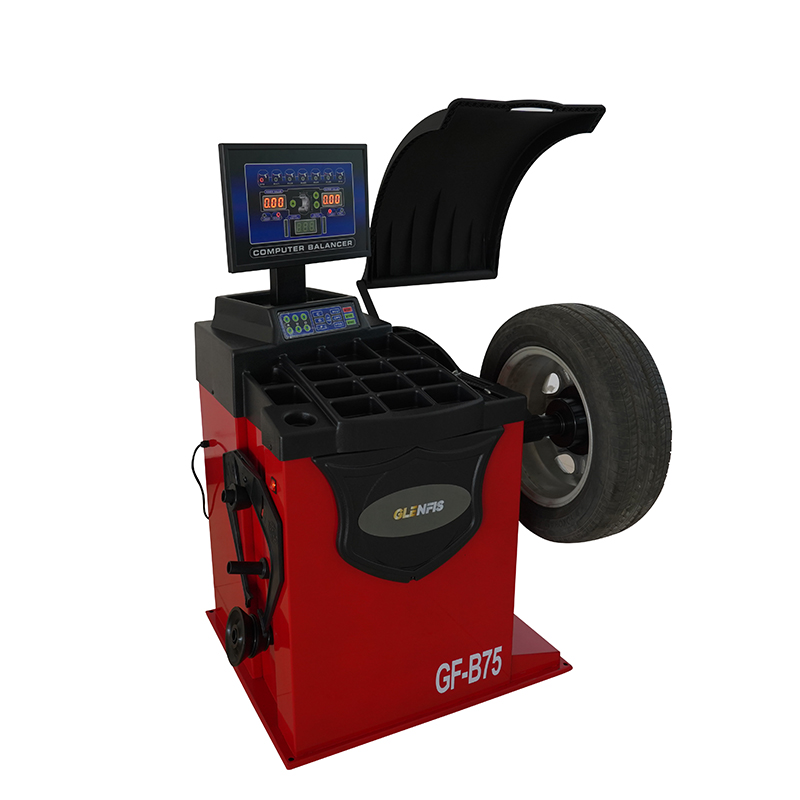

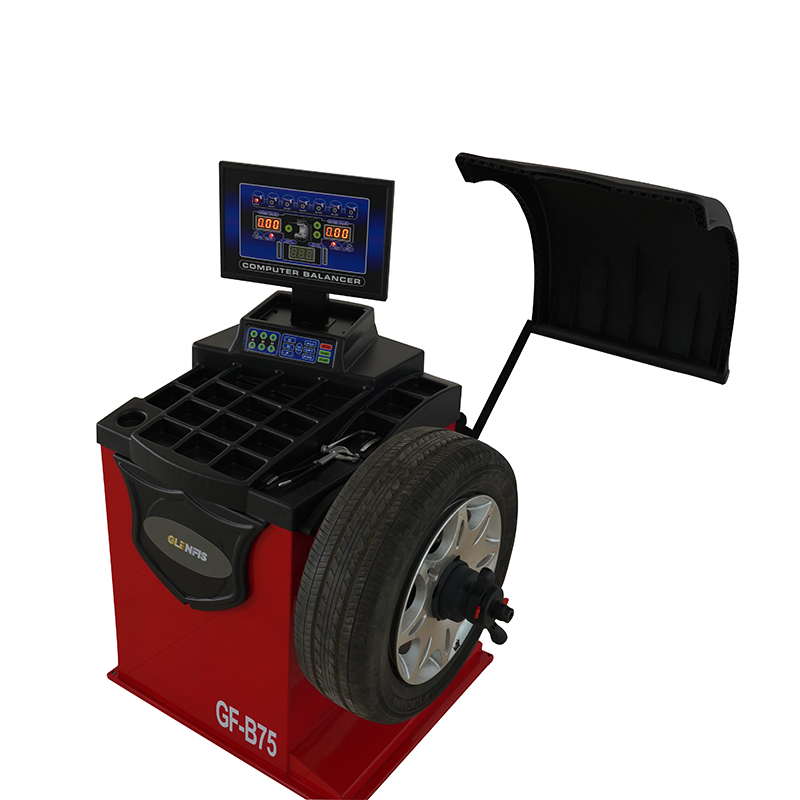

GF-B75-Wheel Balancer(automatic A/D)

The Guorange B75 is an industrial-grade digital wheel balancer engineered for high-throughput automotive workshops, tire service centers, and commercial garages. Featuring an automatic measurement gauge for instant A/D parameter entry, an 8mm reinforced sensor bracket, and a high-efficiency 0.25 kW pure copper winding motor, the B75 delivers ±1g precision within a rapid 7-second measuring cycle. Built with a heavy-duty 3mm welded steel chassis and a hardened φ36mm extended shaft, this unit stabilizes high-speed rotation at 180 RPM, servicing passenger and light commercial wheel assemblies up to 65 kg with long-term calibration stability.

Principales fonctionnalités :

Automatic A & D Parameter Input: Built-in automatic measuring gauge arm automatically inputs wheel distance (UN) and rim diameter (D), eliminating manual data entry errors and speeding up cycle preparation.
Reinforced 8mm Sensor Mounting Base: Rigid 8mm sensor support structure isolates external mechanical resonance, ensuring consistent ±1g balancing accuracy across repeat spin cycles.
Heavy-Duty 3mm Steel Chassis: Structural 3mm steel casing with reinforced seam welds suppresses rotational vibration during the 180 RPM cycle.
Hardened φ36mm Extended Spindle Shaft: Precision-machined, wear-resistant alloy shaft supports wide wheel offsets (up to 15″ width) and assemblies up to 65 kg without shaft deflection.
Industrial Protected Electronics: Equipped with an integrated moisture-proof, dust-proof, and anti-static motherboard, paired with a heavy-duty power board to maintain steady operation under dirty workshop conditions.
Self-Diagnosis & Calibration Suite: Onboard intelligent diagnostic software with automated self-calibration routines for rapid troubleshooting and zero downtime.
Multi-Mode Balancing Architecture: Supports static, dynamic, and multi-position alloy wheel balancing modes with instant unit switching between Ounce/Gram et MM/Inch.

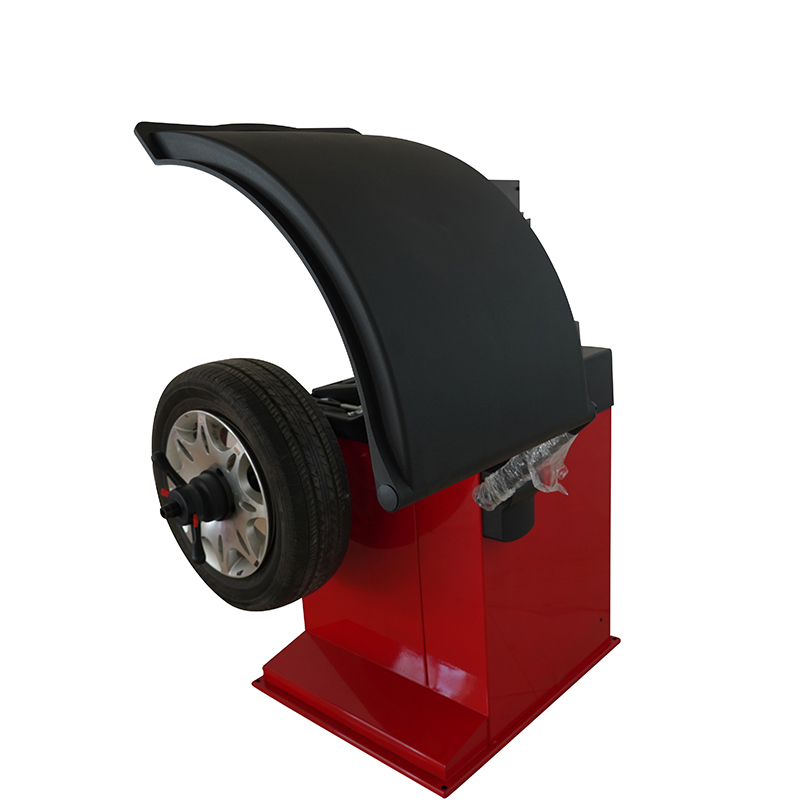

Composite Splash Guard: Includes a durable composite protective wheel hood to protect technicians from loose tread debris during high-speed spinning.

Configurable Options (B2B Customization)

We configure power units and structural details prior to production to match regional electrical standards and private-label requirements:

Electrical Configurations: Standard 110V / 1PH / 60Hz power setup, or pre-configured 220V / 240V / 380V (50/60Hz, Single or Three-Phase) for global markets.
Marque & Finish Customization: Custom color powder coatings, private-label branding plates, tailored cone sets, and specialized export crating (Low MOQ available).

B2B Commercial & Support Terms
- Commercial Warranty: Factory warranty covering the pure copper motor, digital sensor assembly, and motherboard, supported by direct spare parts authorization.
- Global Logistics & Mixed Loading: Export-standard reinforced packaging; fully supports mixed-container shipments with tire changers and car lifts.
- Technical Assistance Channel: Direct factory engineering access for remote diagnostics, sensor calibration support, and electrical configuration guidance.

Caractéristiques

Equipment Model	Guorange B75
Rim Diameter Range	< 24" (610 mm)
Max Wheel Width	15" (380 mm)
Max Wheel Diameter	< 880 mm (34.6")
Max Wheel Weight	< 65 kg (143 lbs)
Balancing Accuracy	±1 g (0.04 oz)
Measuring Cycle Time	7 seconds
Balancing Spin Speed	180 rpm
Spindle Shaft Diameter	φ36 mm (Hardened Alloy Steel)
Rim Center Hole Diameter	< 135 mm
Motor Power	0.25 kW Pure Copper Winding
Standard Power Supply	110V / 1PH (Configurable 220V / 380V)
Unit System Options	Ounce / Gram & MM / Inch
Chassis Wall Thickness	3 mm Heavy-Duty Welded Steel
Compliance & Standards	Full CE & EAC Certified for Global Export

FAQ

Q1: How does automatic A/D parameter entry improve daily workshop efficiency?

The automatic measuring ruler instantly inputs the wheel distance (UN) and rim diameter (D) into the computer board the moment the gauge contacts the rim. This eliminates manual caliper measurements and keypad entries, reducing setup time to just a few seconds while eliminating input errors.

Q2: What structural features ensure the long-term balancing accuracy of the B75?

The B75 utilizes an 8mm thick reinforced sensor bracket combined with a 3mm heavy welded steel cabinet and a hardened φ36mm spindle shaft. This heavy-duty mechanical core eliminates structural flexing and dampens floor vibrations, maintaining precise ±1g calibration over years of continuous commercial operation.

Q3: What is the typical lead time for standard wholesale or OEM private-label orders?

Standard configurations typically ship within 20–30 days from deposit confirmation. Custom private-label runs, specific powder-coat colors, and customized motor voltage configurations are scheduled upon engineering design approval.
