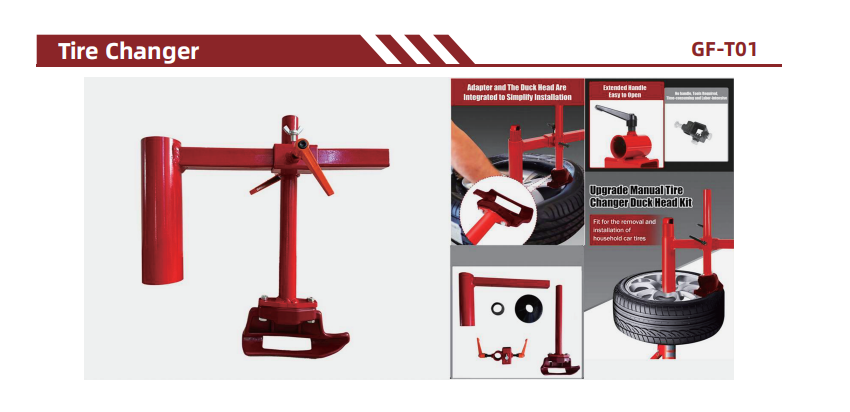

GF-T01(Fully manual Tire Changer)

Suitable for premium and low-profile tires; protects rims and tires during operation

Key Features :

16″–21″ Wheel Compatibility: Engineered to service passenger vehicle, SUV, and light commercial wheels ranging from 16 to 21 inches with consistent mechanical stability.
Non-Marring Duck Head Geometry: Precision-contoured tool head embeds under manual leverage to hook and guide tire beads smoothly onto or off the rim, preventing rim lip scratches and tire bead tearing.
100% Manual Operation (Zero Power / Zero Air): Operates entirely via manual mechanical leverage, making it suitable for field rescue units, roadside utility trailers, and remote service areas without power grid access.
Fast Bolt-On Retrofit: User-friendly clamp-and-bolt architecture allows direct mounting onto standard manual tire changer center posts without complex machining or welding.
Heavy-Duty Structural Rigidity: High-strength steel shaft and reinforced mounting collar withstand high torsional torque during manual tire rotation without bending or twisting.
Low-Maintenance Utility: Free of electronic sensors, electric motors, and pneumatic valves, ensuring zero daily maintenance beyond basic mechanical wipe-down.

Configurable Options (B2B Customization)

We configure mounting collars, shaft adapters, and packaging prior to production to match regional distribution channels:

Shaft & Adapter Sizing: Configurable collar diameters and adapter sleeves to fit various manual tire changer post dimensions.
Marca & Finish Customization: Custom color powder coatings, laser-etched branding logos, private-label retail box packaging, and protective insert kits (Low MOQ available).

B2B Commercial & Support Terms
- Commercial Warranty: Factory warranty covering the structural steel shaft, mounting bracket, and duck head casting against structural failure.
- Global Logistics & Mixed Loading: Compact export carton packaging; fully supports mixed-container shipments with manual tire changers, balancers, and car lifts.
- Technical Assistance Channel: Direct factory engineering access for compatibility consultation, installation guidance, and spare parts support.

Specifications

Equipment Model	Guorange GF-T01
Product Type	Manual Tire Changer Duck Head Retrofit Kit
Operation Type	Fully Manual (Mechanical Leverage)
Compatible Rim / Tire Size	16" – 21" (406 – 533 mm)
Power / Air Requirements	0V / 0 PSI (100% Non-Electric & Air-Free)
Structural Material	High-Strength Alloy Steel & Precision Cast Duck Head
Installation Method	Clamp-On / Bolt-On Post Collar Assembly
Application Environments	Small Garages, Mobile Vans, Roadside Rescue, DIY Workshops
Compliance & Standards	CE & EAC Export Standard Compliant

Preguntas frecuentes

Q1: How does the GF-T01 duck head design protect alloy wheels compared to standard manual pry bars?

Standard manual tire tools rely on bare steel bars that lever directly against the painted or polished rim edge, often causing gouges. The GF-T01 utilizes an engineered duck head profile that maintains continuous separation between the levering surface and the rim lip, guiding the tire bead smoothly into place while keeping the wheel finish scratch-free.

Q2: What manual tire changer stands can the GF-T01 be installed on?

The GF-T01 is designed as a universal retrofit assembly that mounts directly to standard manual tire changer center posts. We offer configurable collar sleeves and mounting brackets to match standard round or square post dimensions across different manual changer brands.

Q3: What is the typical lead time for wholesale orders and custom OEM packaging?

Standard inventory units ship within 15–25 days from deposit confirmation. Custom private-label runs, branded retail color boxes, and specialized surface coatings are scheduled upon technical artwork approval.
