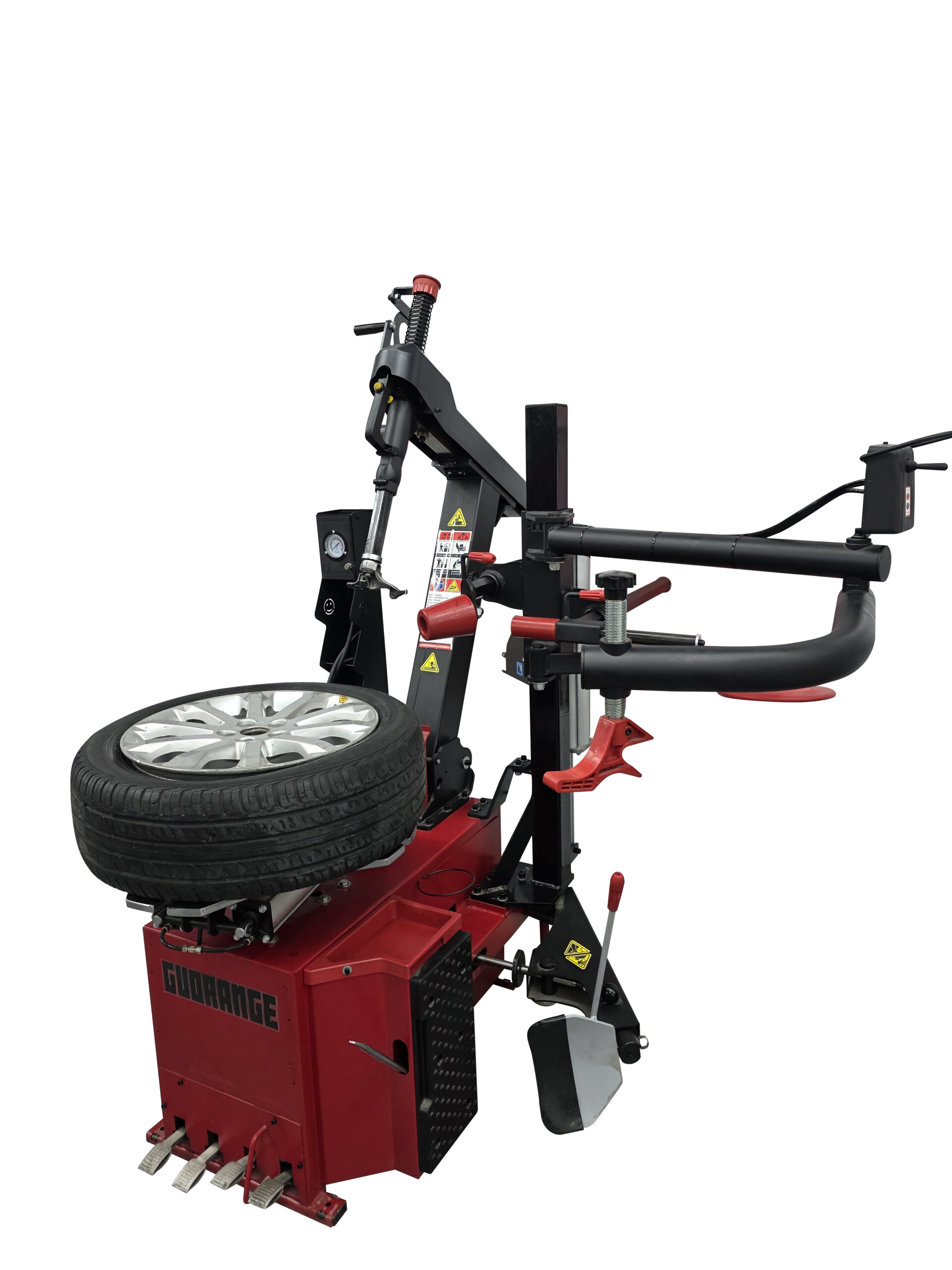

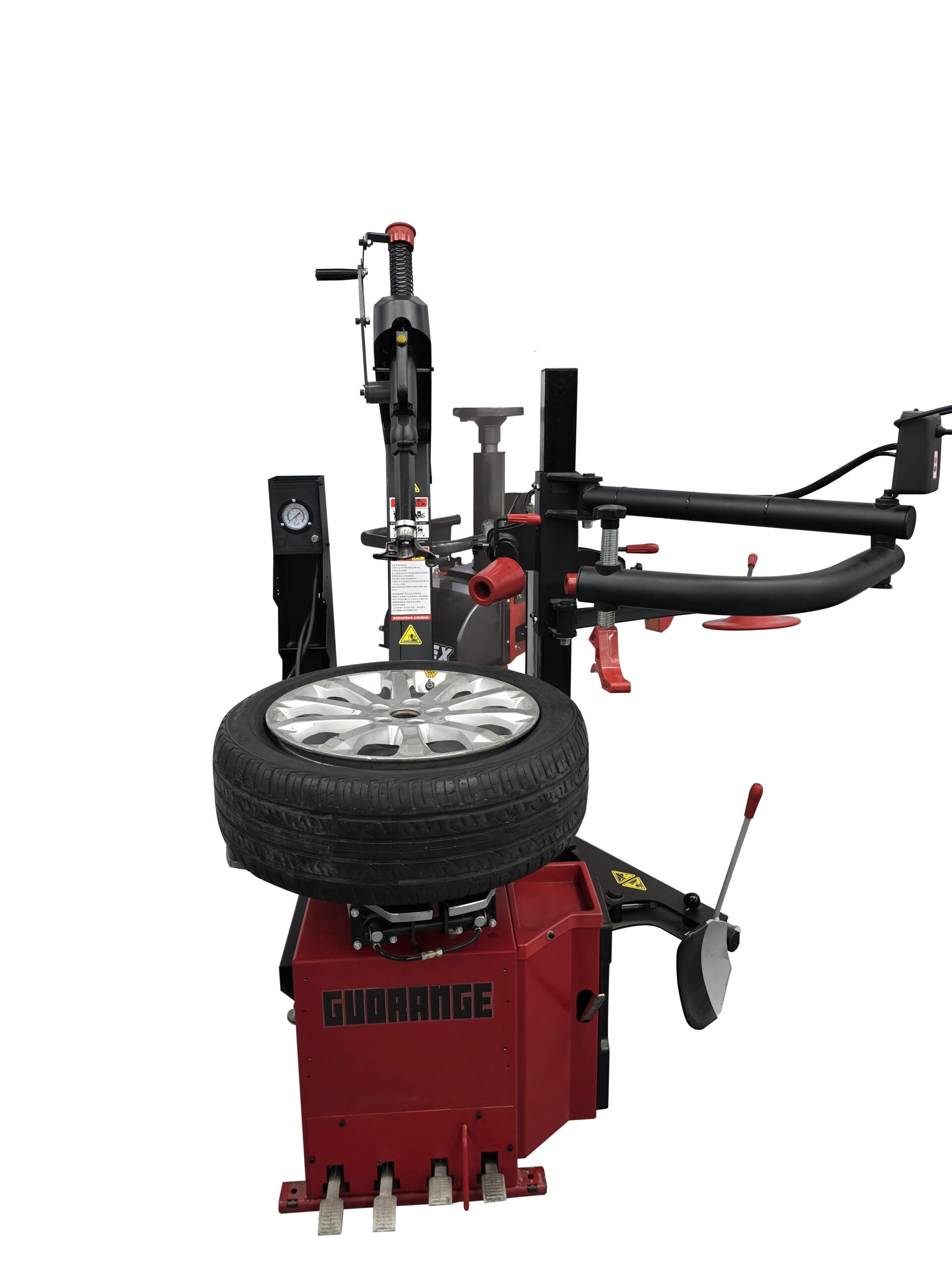

GF-T85 Tire Changer(semi-automatic with tilt-back robotic arm)

GF-T85 Tire Changer(semi-automatic with tilt-back robotic arm)

The Guorange T85 is an industrial-grade, heavy-duty tire changer engineered for high-throughput automotive repair shops, performance garages, and busy commercial tire centers. Built around a reinforced 340 kg (750 libras) rigid steel chassis and powered by a 2.0HP (1.5kW) drive motor, the T85 handles oversized assemblies with a maximum wheel diameter of 47 inches (1,200mm) and an expanded internal clamping range up to 28 inches. Equipped with an integrated pneumatic assist arm (helper arm), an adjustable high-output bead breaker, and multi-point rim protection hardware, the T85 enables technicians to mount and demount passenger, SUV, low-profile, and commercial wheels with speed, repeatable precision, and complete rim safety.

Key Features :

Right-Side Pneumatic Assist Arm (Helper Arm): Precision helper arm provides direct downward pressure during the tire mounting phase, holding stiff beads securely inside the drop center for safe, labor-saving installation.
High-Capacity Clamping Range: Heavy-duty four-jaw turntable accommodates outside clamping from 14″ to 26″ and inside clamping from 16″ to 28″, easily servicing oversized aftermarket rims and light commercial wheels.
Reinforced 340KG Steel Chassis: Heavy structural footprint minimizes mechanical deflection and absorbs torsional vibration during high-torque turntable rotation.
High-Torque 2.0HP Motor: Pure copper winding motor delivers reliable rotation torque (6.8 RPM) and fast heat dissipation under continuous shop operating cycles.
Adjustable High-Force Bead Breaker: Powerful pneumatic lateral breaker with an ergonomic spade profile unseats stubborn beads on run-flat, low-profile, and high-ply tires without wheel damage.
Alloy Steel Duckhead with Composite Protectors: Precision-cast tool head contoured to minimize tire stress during demounting, fitted with replaceable polymer inserts to eliminate metal-on-metal rim contact.
Ergonomic Pedal Control & Integrated Tray: Intuitive foot pedal arrangement for hands-free operation, paired with a built-in top tool tray to keep lube, valves, and clip-on protectors within reach.

Configurable Options (B2B Customization)

We configure power units and structural details prior to production to match regional electrical standards and OEM distribution requirements:

Electrical Configurations: Standard North American 110V / 1PH / 2.0HP setup, or pre-configured 220V / 380V (50/60Hz, Single or Three-Phase) for international markets.
Marca & Finish Customization: Custom color powder coatings, private-label branding plates, specialized export crating, and optional auxiliary accessories (Low MOQ available)

B2B Commercial & Support Terms
- Commercial Warranty: Factory warranty covering the pure copper motor, pneumatic assist cylinders, and core structural assemblies with rapid spare parts authorization.
- Global Freight & Mixed Loading: Export-standard reinforced crating; fully supports mixed-container logistics alongside wheel balancers and car lifts.
- Factory Technical Channel: Direct access to factory engineers for remote troubleshooting, pneumatic system adjustments, and technical documentation.

Specifications

Equipment Model	Guorange T85
Assist Mechanism	Multi-arm Pneumatic Auxiliary Arm (Auxiliary Arm)
Outside Clamping Range	14" – 26" (356 – 660 mm)
Inside Clamping Range	16" – 28" (406 – 710 mm)
Max Wheel Diameter	47" (1,200 mm)
Max Wheel Width	15" (380 mm)
Motor Power	2.0 HP (1.5 kW) Pure Copper Winding
Turntable Rotation Speed	6.8 r/min
Operating Air Pressure	0.8 – 1.0 MPa (116 – 145 psi)
Power Supply	110V / 1PH (Configurable 220V / 380V)
Net Weight (Machine)	340 KG
Compliance & Standards	Full CE & EAC Certified for Global Export

Preguntas frecuentes

Q1: How does the Multi-arm Pneumatic Auxiliary Arm (Auxiliary Arm) improve mounting efficiency for wide and low-profile tires?

During the tire mounting phase, the pneumatic helper arm applies continuous downward pressure on the upper tire sidewall, keeping the bead seated firmly in the rim's drop center. This prevents the bead from climbing out of position, eliminates the need for manual tire irons during mounting, and protects alloy wheel edges from scratching.

Q2: What is the typical lead time for standard wholesale and custom OEM private-label orders?

Standard configurations typically ship within 20–30 days from deposit confirmation. Custom private-label branding, customized powder-coat colors, and specific motor voltage configurations are scheduled upon engineering design approval.

Q3: How are pneumatic components and high-wear replacement parts supported internationally?

We maintain a complete factory stock of wearing parts, including assist arm control valves, seal kits, clamping jaw inserts, and demount head plastic protectors. Replacement components can be dispatched via international express channels alongside direct remote diagnostic assistance.
