GF-T20 (no electricity Tire Changer)

GF-T20 (no electricity Tire Changer)

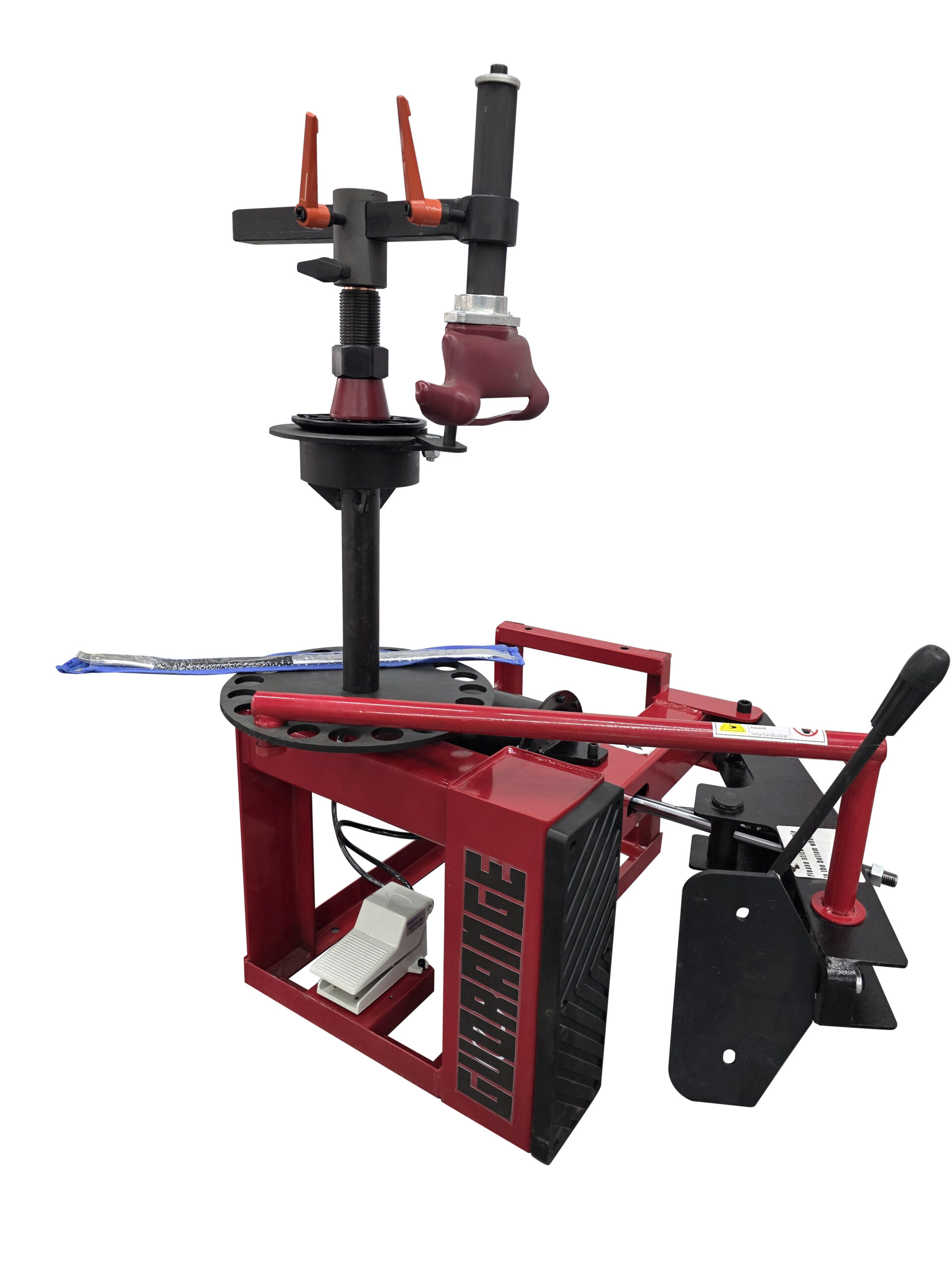

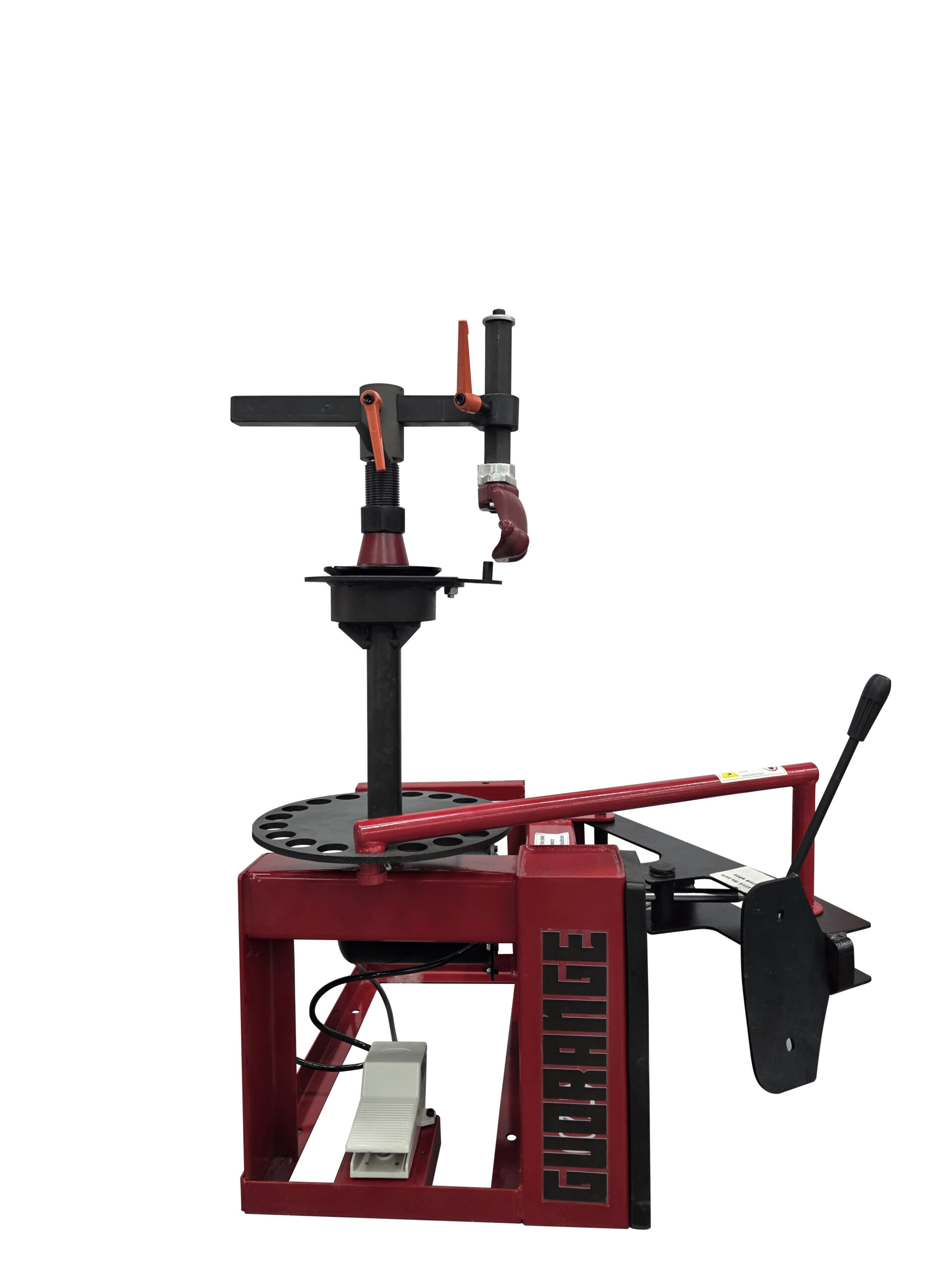

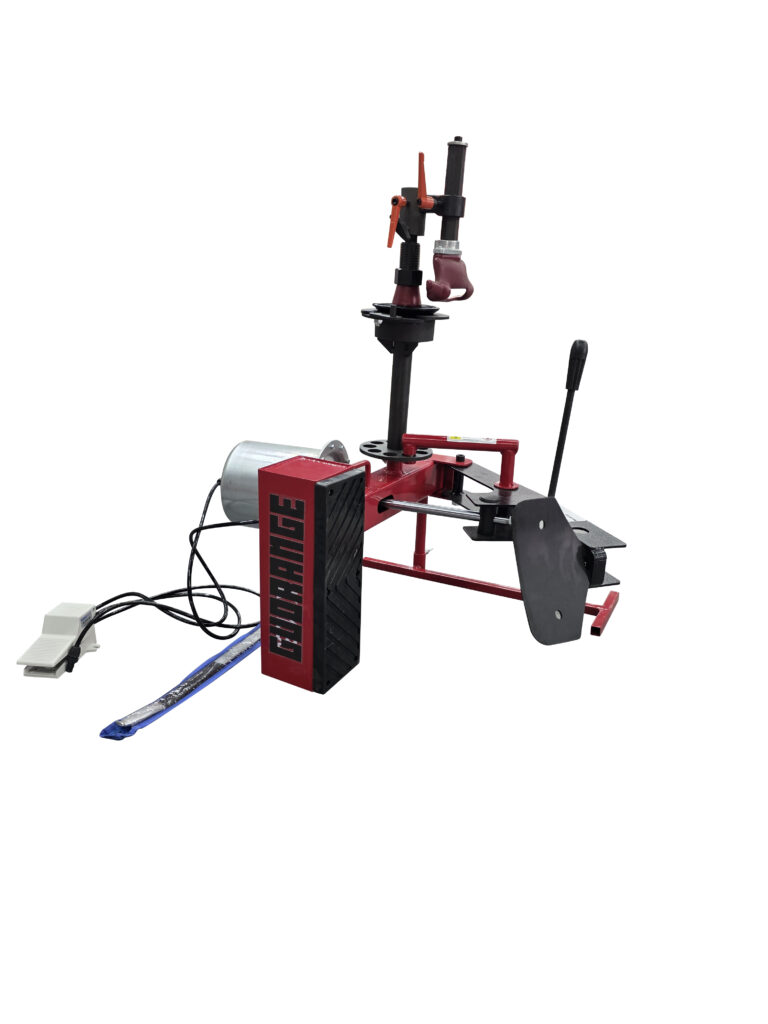

The Guorange T20 is a heavy-duty, non-electric tire changer engineered specifically for mobile roadside service trucks, agricultural equipment bays, small workshops, and residential garages. Powered 100% by compressed air with zero electrical power requirements, the T20 eliminates power grid dependencies, delivering dependable bead-breaking and tire mounting/demounting capability in both indoor and outdoor field environments. With its compact footprint, reinforced high-tensile steel frame, and mechanical-pneumatic architecture, the T20 offers maximum portability, low maintenance overhead, and rapid setup on shop floors or inside emergency service vehicles.

Key Features :

100% Pneumatic Operation (Zero Electricity Required): Operates entirely on standard shop or mobile air compressor lines, eliminating high-voltage wiring, electrical failure points, and power grid restrictions.
Independent Field Utility: Ideal for roadside assistance trucks, remote agricultural maintenance, mobile repair trailers, and areas without stable 110V/220V power sources.
High-Force Pneumatic Bead Breaker: Dedicated air-driven bead breaking cylinder delivers instant lateral force to unseat stubborn beads quickly and cleanly.
Heavy-Duty Steel Construction: Rigid steel chassis engineered to absorb mechanical torque and vibration while maintaining structural alignment under continuous use.
Compact & Mountable Footprint: Space-saving profile allows for easy floor anchoring in compact garage bays or secure bolt-down mounting inside service vans.
Low Maintenance Architecture: Helper-free and motorless mechanical layout minimizes wear components, reducing daily maintenance demands to simple pneumatic oiling.

Configurable Options (B2B Customization)

We configure pneumatic fittings and structural hardware prior to production to match regional distribution requirements:

Pneumatic Connectors & Fittings: Pre-installed air intake couplings available in NPT, BSP, or standard quick-connect fittings matching regional shop standards.
Marca & Finish Customization: Custom color powder coatings, private-label branding plates, dedicated service-van mounting brackets, and export crating (Low MOQ available)

B2B Commercial & Support Terms
- Commercial Warranty: Factory warranty covering the high-tensile steel frame and pneumatic cylinder assemblies, backed by immediate replacement parts authorization.
- Global Logistics & Mixed Loading: Standard export packaging optimized for container density; fully supports mixed-container shipping with wheel balancers, tire changers, and car lifts.
- Technical Assistance Channel: Direct factory engineering access for remote diagnostics, pneumatic setup consultation, and parts support.

Specifications

Equipment Model	Guorange T20
Operation Type	Non-Electric / 100% Pneumatic Powered
Power Requirement	0V (No Electricity Needed)
Drive Mechanism	Pure Pneumatic Cylinder & Manual Mechanical Leverage
Operating Air Pressure	0.8 – 1.0 MPa (116 – 145 psi)
Chassis Structure	High-Tensile Reinforced Heavy-Duty Steel Frame
Installation Options	Shop Floor Anchored / Mobile Van Mountable
Recommended Applications	Mobile Service Vans, Small Garages, Farms, Roadside Assistance
Compliance & Standards	CE & EAC Certified for Global Commercial Export

Preguntas frecuentes

Q1: What makes the T20 non-electric model ideal for roadside assistance and mobile service vans?

Because the T20 relies entirely on compressed air, operators do not need onboard electric generators or high-amperage inverters inside their vehicles. This significantly lowers service truck outfitting costs, saves payload weight, and eliminates the electrical fire hazards associated with outdoor tire servicing in wet or muddy conditions.

Q2: What is the typical lead time for standard wholesale and custom OEM private-label orders?

Standard configurations typically ship within 20–30 days from deposit confirmation. Custom private-label branding runs, specialized powder-coat finishes, and specific air fitting configurations are scheduled upon technical design approval.

Q3: How are pneumatic seal kits and replacement wear parts supported internationally?

We maintain a permanent factory inventory of all pneumatic valves, cylinder seal kits, and mounting accessories. In the event of routine maintenance or repair, replacement components can be dispatched via international express channels alongside direct remote technical assistance.
